BENZOPHENONE-INITIATED PHOTO-CROSSLINKING OF PVA COMPOSITIONS AND THE PROPERTIES OF THE OBTAINED HYDROGELS

Authors

  • Vasyl O. Vaskiv Lviv Polytechnic National University, Ukraine
  • Dmytro I. Saiuk Lviv Polytechnic National University, Ukraine
  • Viktor S. Tokarev Lviv Polytechnic National University, Ukraine http://orcid.org/0000-0003-3276-1077

DOI:

https://doi.org/10.15421/jchemtech.v34i2.351157

Keywords:

polyvinyl alcohol, benzophenone, functional acrylic monomer, photo-crosslinking, polymer hydrogel composition, swelling kinetics

Abstract

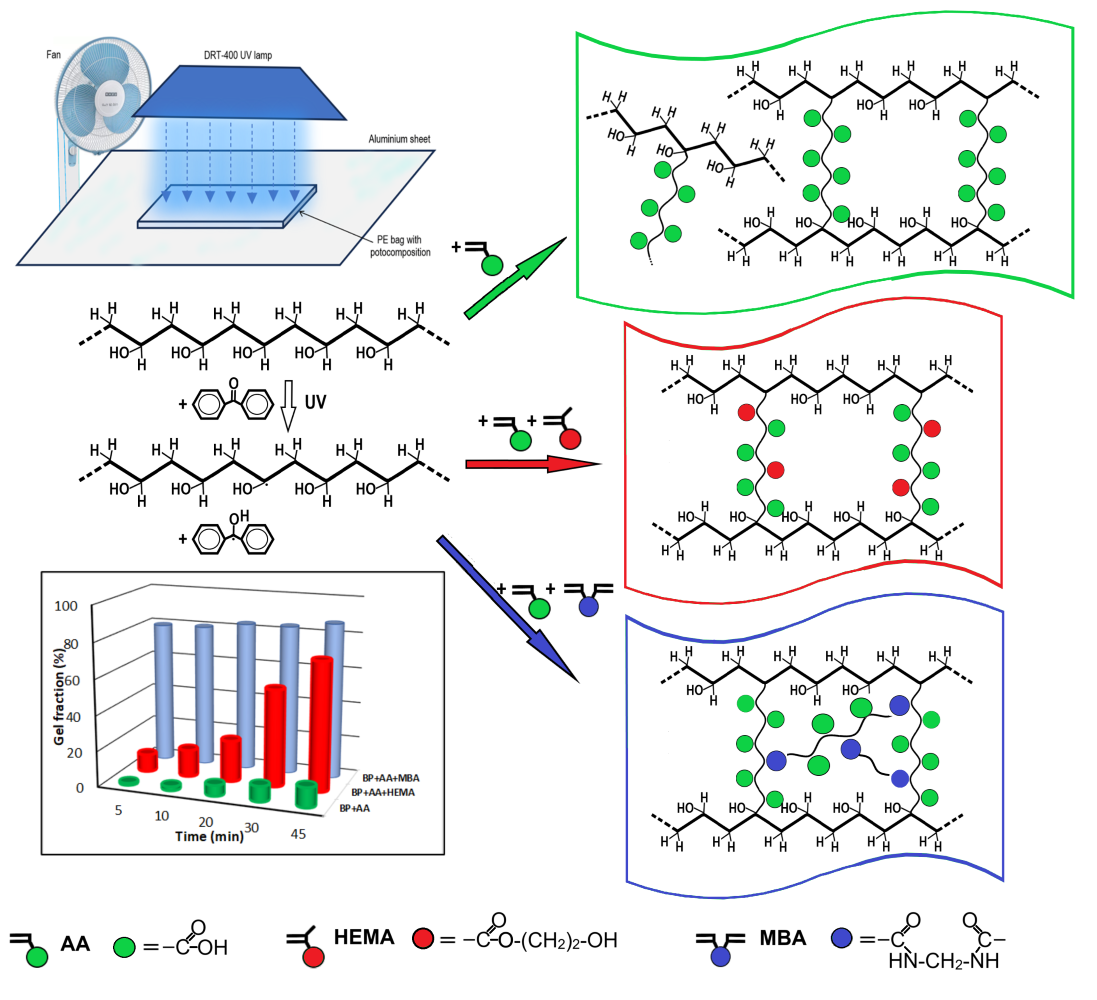

This study aimed to develop photo-crosslinkable hydrogel compositions based on polyvinyl alcohol (PVA), the photoinitiator benzophenone (BP) and functional acrylic monomers, namely acrylic acid (AA), 2‑hydroxyethyl methacrylate (HEMA), methylene-bis-acrylamide (MBA). A gradual increase in the content of gel fraction with UV irradiation time was observed for all composite films, indicating progressive crosslinking. PVA compositions with BP and AA, demonstrated the lowest content and the slowest increase in the gel fraction. The addition of MBA resulted in rapid crosslinking and the highest gel fraction content, whereas HEMA-containing compositions required longer irradiation times to achieve comparable levels of crosslinking. Water absorbability depended on both film composition and gel fraction. Films containing BP, AA, and HEMA exhibited the highest water absorbability. Compositions containing BP, AA, and MBA demonstrated the best water resistance, the highest tensile strength and hardness, and the lowest elongation at break, indicating the formation of highly crosslinked hydrogel networks.



References

Finch, C. A. (Ed.). (1992). Polyvinyl Alcohol - Developments (2nd ed.). Wiley.

Sanjib, S., Subhankar, P., Sarathi, K. (2021). Crosslinked poly (vinyl alcohol): Structural, optical and mechanical properties. Surfaces and Interfaces, 25, 101198. https://doi.org/10.1016/j.surfin.2021.101198.

Bercea. M. (2024) Recent Advances in Poly(vinyl alcohol)-Based Hydrogels. Polymers, 16(14), 2021. DOI: 10.3390/polym16142021.

Xiaoxu, L., Zhong, H.-J., Ding, H., Yu, B., Ma, X., Liu, X., Chong, C.-M., He J. (2024). Polyvinyl Alcohol (PVA)-Based Hydrogels: Recent Progress in Fabrication, Properties, and Multifunctional Applications. Polymers, 16(19), 2755. doi: 10.3390/polym16192755.

Khan, M. M. R., Rumon, M. H. (2025) Synthesis of PVA-Based Hydrogels for Biomedical Applications: Recent Trends and Advances. Gels, 11(2), 88. DOI 10.3390/gels11020088.

Vatanpour, V., Teber, O. O., Mehrabi, M., Koyuncu, I. (2023) Polyvinyl alcohol-based separation membranes: a comprehensive review on fabrication techniques, applications and future prospective. Materials. Today Chemistry, 28, 101381. doi: 10.1016/j.mtchem.2023.101381.

Visakh, P. M., Nazarenko, O. B. (Eds.). (2023). Polyvinyl Alcohol‐Based Biocomposites and Bionanocomposites. Scrivener Publishing LLC. https://doi.org/10.1002/9781119593218.

Kumar, N., Gusain, R., Pandey, S., Ray, S. S. (2022) Hydrogel Nanocomposite Adsorbents and Photocatalysts for Sustainable Water Purification. Advanced Materials Interfaces, 10(2), 2201375. doi: 10.1002/admi.202201375.

Berdiev, U., Khudaykulov, I., Iskandarov, S., Amirova, A., Ashurov, K. (2025) Influence of SiO2 Nanoparticles on the Characteristics of a Polyvinyl Alcohol-Based Proton Exchange Composite Membrane. East European Journal of Physics, 12(1), 265–271. doi: 10.26565/2312-4334-2025-1-30.

Jailani, A., Hidzer, M. H., Firdaus, A. H. M., Sapuan, S. M., Zainudin, E. S., Atiqah, A., Jaafar, W. M. W., Suryanegara, L. (2026) Enhancing polyvinyl alcohol (PVA) nanocomposites: Key properties, applications and challenges in advanced engineering. Defence Technology, 55(1) 11–29. doi: 10.1016/j.dt.2025.05.020.

Elbakyan, L., Zaporotskova, I., Hayrapetyan, D. (2024) Nanocomposite Material Based on Polyvinyl Alcohol Modified with Carbon Nanotubes: Mechanism of Formation and Electronic Energy Structure. J. Compos. Sci., 8(2), 54. doi: 10.3390/jcs8020054.

Papapetros, K., Mathioudakis, G. N., Vroulias, D., Koutroumanis, N., Voyiatzis, G. A., Andrikopoulo, K. S. (2025) Structure-Properties Correlations of PVA-Cellulose Based Nanocomposite Films for Food Packaging Applications. Polymers, 17(14), 1911. doi: 10.3390/polym17141911.

Tokarev, V. S., Korbutyak, D. V., Shevchuk, О. М., Bukartyk, N. M. (2025). Synthesis of multi-layered nanocomposite polymer films with embedded nanocrystals of PbS. XX International Freik Conference Physics and Technology of Thin Films and Nanosystems. Materials, Ivano-Frankivsk, Ukraine, 28.

Wang, M., Bai, J., Shao, K., Tang, W., Zhao, X., Lin, D., Huang, S., Chen, C., Ding, Z., Ye, J. (2021) Poly(vinyl alcohol) Hydrogels: The Old and New Functional Materials. Int. J. Polym. Sci., 2021(1), 2225426. doi: 10.1155/2021/2225426.

Shim, S.-Y., Kim, J.-M. (2001) Alcohol-Assisted Photocrosslinking of Poly(vinyl alcohol) for Water-Soluble Photoresists. Bull. Korean Chem. Soc., 22(10), 1120–1122.

Yuan, H., Liu, K., Luo, W., Wang, Z., Yan, C., Hu, J., Wang, X., Liu, G., Xu, Z., Lu, Z. (2024) Tartaric Acid Cross-Linking Polyvinyl Alcohol as Degradable Separators for Rechargeable Lithium Ion Batteries. ChemSusChem, 17(19), e202400359. DOI: 10.1002/cssc.202400359.

Zhang, Z., Wang, S., Lucia, L. A., Abidi, N. (2024) Processing physically crosslinked polyvinyl alcohol. Polymer, 307, 127313. doi: 10.1016/j.polymer.2024.127313.

Serdiuk, V., Shevchuk, O., Tetiana, K., Bukartyk, N., Tokarev, V. (2023) Synthesis of reactive copolymers with peroxide functionality for cross-linking water-soluble polymers. J. Appl. Polymer Sci., 140(1), e53254. DOI: 10.1002/app.53254.

Nguyen, K. T., West, J. L. (2002) Photopolymerizable hydrogels for tissue engineering applications. Biomaterials, 23, 4307–4314. doi: 10.1016/S0142-9612(02)00175-8.

Schmedlen, R. H., Masters, K. S., West, J. L. (2002) Photocrosslinkable polyvinyl alcohol hydrogels that can be modified with cell adhesion peptides for use in tissue engineering. Biomaterials, 23(22), 4325–4332. doi: 10.1016/S0142-9612(02)00177-1.

Goldvaser, M., Epstein, E., Rosen, O., Jayson, A., Natan, N., Ben-Shalom, T., Saphier, S., Katalan, S., Shoseyov, O. (2022) Poly(vinyl alcohol)-methacrylate with CRGD peptide: A photocurable biocompatible hydrogel. J. Tissue Eng. Regen. Med., 16(2), 140–150. doi: 10.1002/term.3265.

Fouassier, J. P., Lalevée, J. (2012) Photoinitiators for Polymer Synthesis: Scope, Reactivity and Efficiency. Wiley-VCH, Weinheim.

Katime, I., Mendizabal, E. (2010) Swelling Properties of New Hydrogels Based on the Dimethyl Amino Ethyl Acrylate Methyl Chloride Quaternary Salt with Acrylic Acid and 2-Methylene Butane-1,4-Dioic Acid Monomers in Aqueous Solutions. Mater. Sci. & Appl., 1(03), 162–167. doi: 10.4236/msa.2010.13026.

Zawadzka, O., Gnatowski, P., Piłat, E., Kucińska-Lipka, J. (2025) Investigation on the swelling kinetics of gelatin based hydrogels. Chem. Chem. Technol., 19(2), 259–269. doi:10.23939/chcht19.02.259.

ISO EN ISO 1522: 2022; Paints and Varnishes – Pendulum Damping Test. International Organization for Standardization: Geneva, Switzerland.

ISO 527-1:2022 Plastics – Determination of tensile properties – Part 1: General principles. International Organization for Standardization: Geneva, Switzerland.

Rånby, B., Yang, W., Tretinnikov, O., Tokarev, V., Xu, Y. H. (2001) Lamination of polymer films by bulk surface photografting process and properties. Chinese J. Polym. Sci. (English Edition), 19(2), 123–127.

Aldebasi, S. M., Tar, H., Alnafisah, A. S., Salmi-Mani, H., Kouki, N., Alminderej, F. M., Lalevée, J. (2023) Surface Modification of PP and PBT Nonwoven Membranes for Enhanced Efficiency in Photocatalytic MB Dye Removal and Antibacterial Activity. Polymers, 15(16), 3378. doi: 10.3390/polym15163378.

Wang, Z., Cui, F., Sui, Y., Yan, J. (2023) Radical chemistry in polymer science: an overview and recent advances. Beilstein J. Org. Chem., 19(1), 1580–1603. doi: 10.3762/bjoc.19.116.

Hoti, G., Caldera, F., Cecone, C., Pedrazzo, A. R., Anceschi, A., Appleton, S. L., Monfared, Y. K., Trotta, F. (2021) Effect of the Cross-Linking Density on the Swelling and Rheological Behavior of Ester-Bridged β-Cyclodextrin Nanosponges. Materials (Basel), 14(3), 478. doi: 10.3390/ma14030478.

Iliasov, L., Shibaev, A., Panova, I., Kushchev, P., Philippova, O., Yaroslavov, A. (2023) Weakly Cross-Linked Anionic Copolymers: Kinetics of Swelling and Water-Retaining Properties of Hydrogels. Polymers, 15(15), 3244. doi: 10.3390/polym15153244
